Manual for Digital Level (Inclinometer) App

■ Screen structure

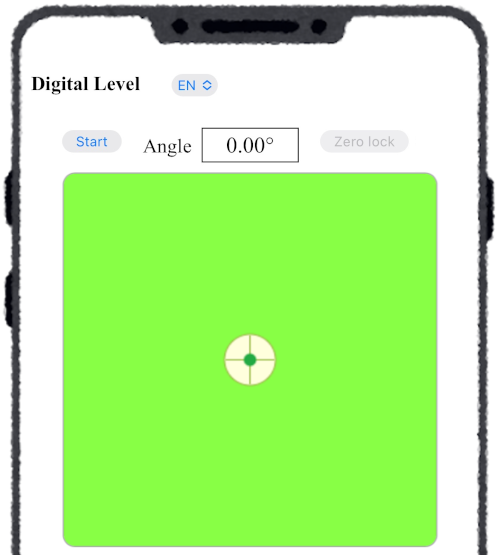

Screen of the Level App (Portrait)

When you access the Digital Level (Inclinometer) app, a screen like the one shown in the figure appears. The green area represents a spirit level, with a bubble (white circle in the center) floating inside the light green liquid.

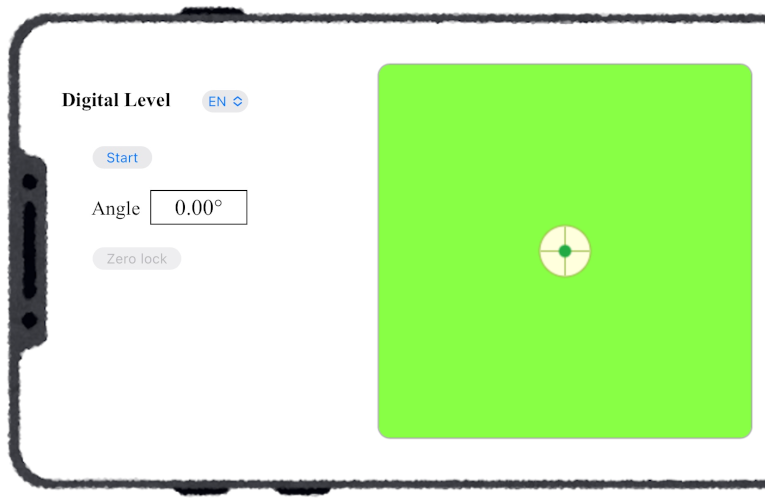

Screen of the Level App (Landscape)
If auto-rotate is enabled on the device, the display switches to landscape when the device is turned sideways.


By clicking the "Start" button of the level and placing the device on a slope, you can measure the slope angle. As shown in the figure, when the device is placed facing upward on the slope, the bubble on the screen moves upward, and a line (projection of the vertical line) connecting the bubble and the center of the screen is displayed.

Smartphone placed on a slope

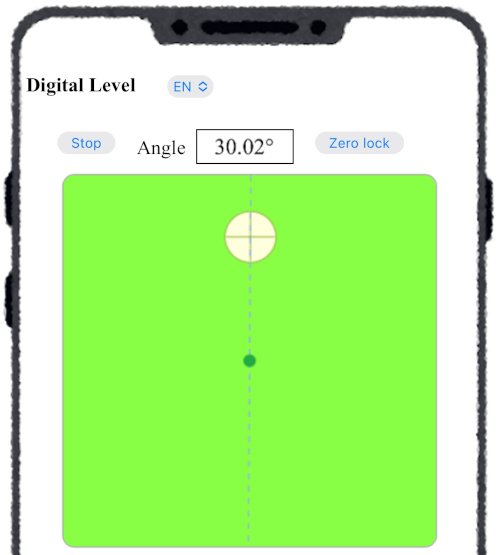

Screen when placed on a 30° slope
